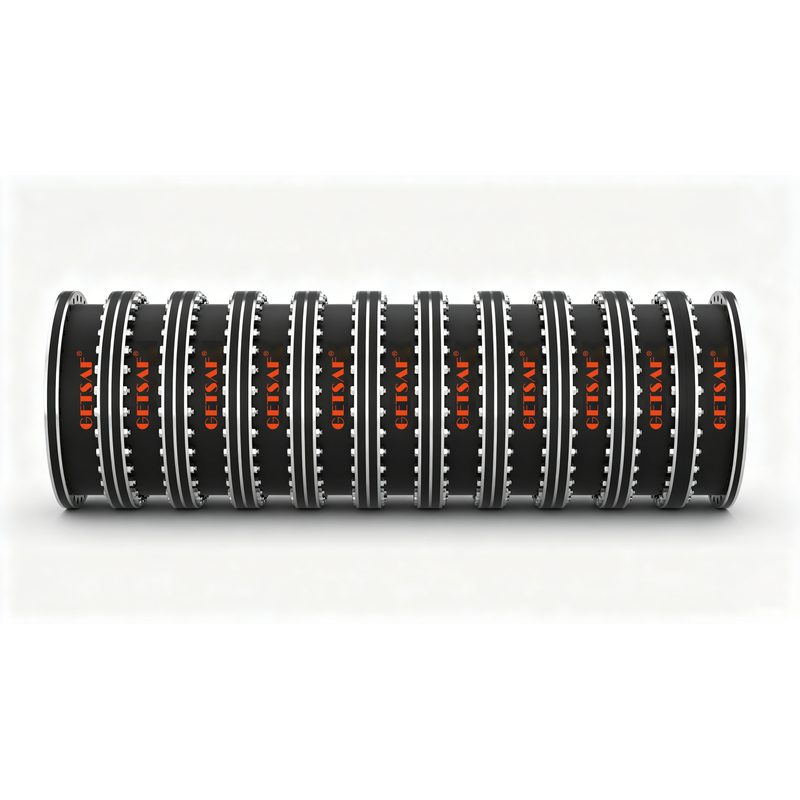

Segment Steel Cone Hose

Product Overview

A special suction hose for cutter suction dredger ladders, built with internal segment steel cones for hard and abrasive materials.

Product Detail

The segment steel cone hose is designed for severe suction service where the dredger handles coral, gravel, coarse sand or weathered rock. Internal steel cone segments form the main wear surface and are directionally assembled to improve stability and conveying capacity.

Features

• Internal segment steel cones as the working wear surface
• Designed for coral, gravel, coarse sand and weathered rock
• Directional assembly for stable conveying
• Suitable for cutter suction dredger ladder positions
• High wear resistance under severe suction conditions

Technical Parameters

Design Note

Customized specifications are available according to project requirements. Final design should be confirmed based on slurry density, pipeline layout, dredger type, pressure, bending radius and installation conditions.

Applications

Used on cutter suction dredger ladder suction sections where ordinary suction hoses are not sufficient for sharp or hard materials.

Information Needed for Quotation

• Nominal bore size, overall length and flange standard
• Working pressure, test pressure and suction/vacuum requirement if applicable
• Conveyed material: mud, sand, clay, silt, gravel, coral, ore or other slurry
• Slurry density, solid content, particle size and abrasion condition
• Pipeline arrangement: floating, submerged, shore, deck, pump inlet/outlet or bow blowing
