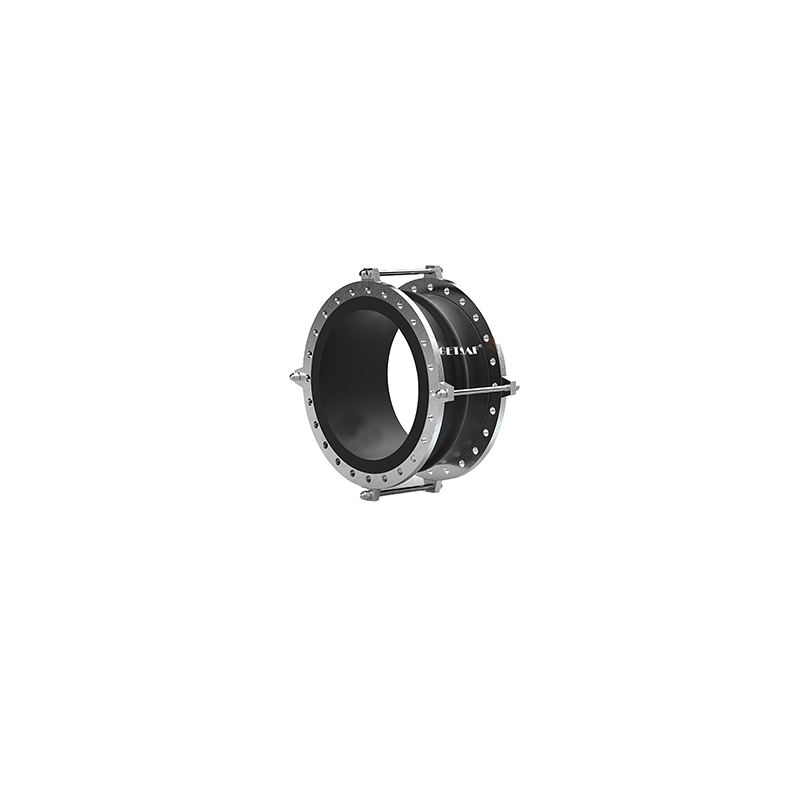

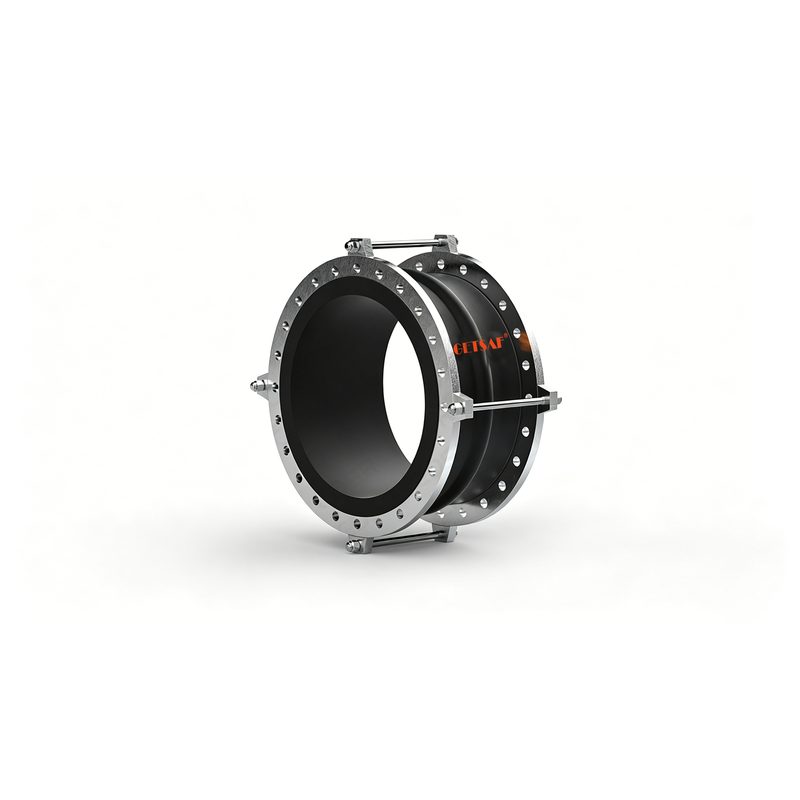

Expansion Joint

| Product Overview

Expansion joint is used to absorb axial movement, lateral displacement, angular misalignment and installation tolerance between connected sections of a piping or hose system. It also helps reduce vibration transfer and local stress concentration, making it a practical solution for equipment interfaces, rigid-to-flexible transitions and other dynamic service points in dredging systems.

Technical Parameters

ParameterSpecification
ModelGS-DG28-EJ
Nominal Bore100mm-1300mm
Working Pressure0.5MPa-3.0MPa
Vacuum Resistance-0.1MPa
Face to Face0.2m-1.0m
Axial Movement50mm-150mm
Lateral Displacement25mm-100mm
Angular Deflection±10°
