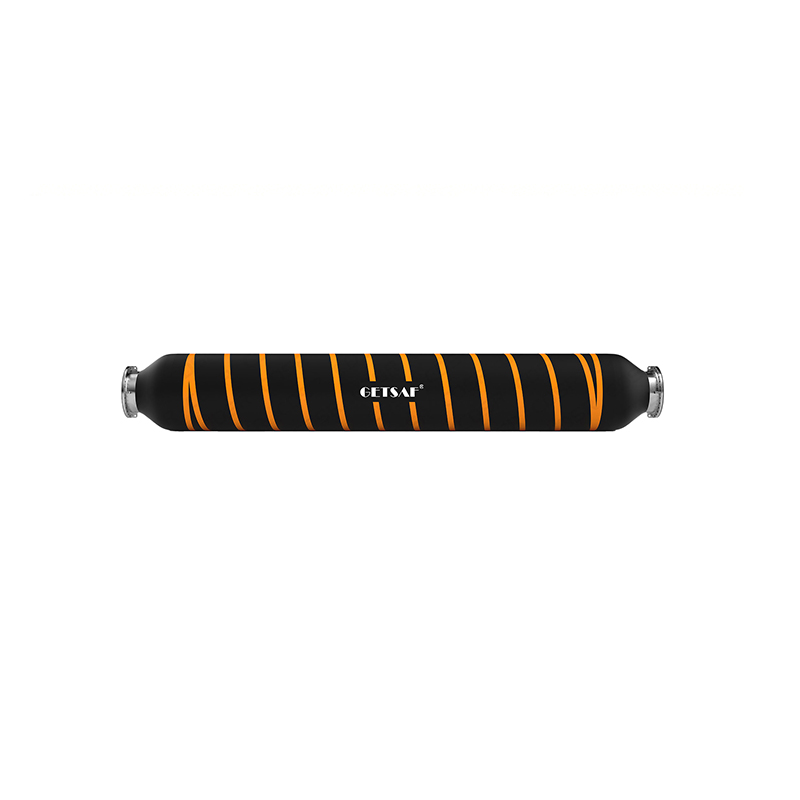

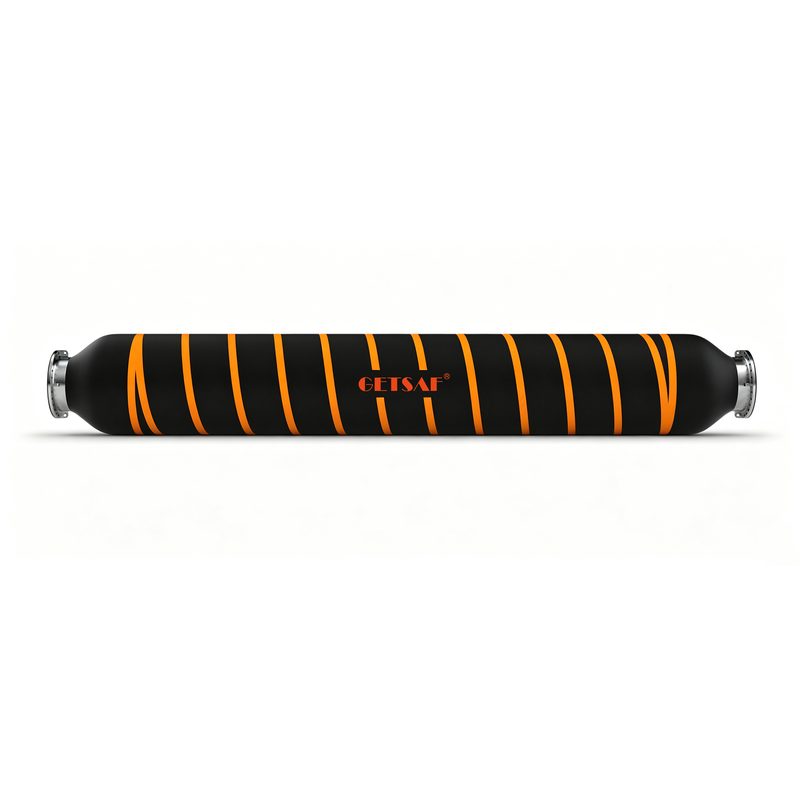

Armored Floating Hose

产品概述 | Product Overview

耐切割漂浮疏浚管适用于含有珊瑚碎片、贝壳、岩石颗粒或其他尖锐固体介质的水面输送场景,在保持浮式输送功能的同时强化内衬耐切割性能和整体耐磨寿命。该类产品通常在内胶层或工作层中引入耐切割结构设计,以降低尖锐介质对软管内壁造成的局部破坏风险。

Armored floating hose is developed for floating transfer of slurry containing sharp and highly abrasive solids such as coral fragments, shell pieces or angular rock particles. This hose family retains the buoyant performance required for surface service while incorporating a cut-resistant working structure to improve resistance against internal damage and prolong service life in severe abrasive conditions.

技术参数 | Technical Parameters

参数Parameter 规格Specification
型号Model GS-DG25-AF
内径InsideDiameter 700mm-1200mm
工作压力WorkingPressure 2.5MPa-4.0MPa
设计比重Design SG 1.0-2.4
浮力储备Flotation Reserve 20%-25%
耐切割层Armor Hardness HB400-HB550
标准长度Standard Length 6.1m-11.8m
端部连接End Fittings 钢法兰 Steel Flange
