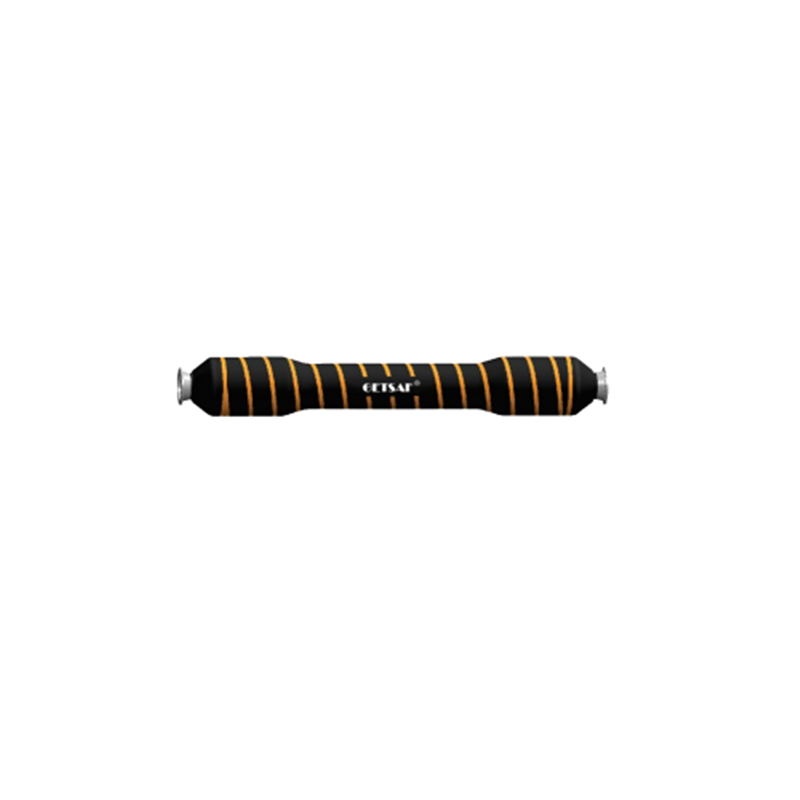

Tanker hose lines are used to connect a tanker’s deck manifold to the terminal’s pipeline system, enduring dynamic loads and wave impacts during berthing and cargo transfer operations. GETSAF tanker hose lines feature a high-strength skeletal structure, offering superior fatigue resistance.
| Technical Parameters
| Parameter | Specification |
|---|---|
| Model | GS81115/ GS82115 |
| InsideDiameter | 6″(150mm)-12″(300mm) |
| WorkingPressure | 15bar/ 19bar/ 21bar |
| BurstPressure | ≥5×WP(75/ 95/ 105bar) |
| MinBendRadius | 4DN |
| Temperature | -20°C to +82°C |
| Flange | ASME B16.5 Class 150/300 |
| Flow Velocity | 21 m/s (continuous) |
| Conveyed Media | Crude Oil and Liquid Petroleum Products (excluding LPG/LNG; max. 50% aromatics) |
| Electrical Continuity | Electrically Continuous |
| Buoyancy Reserve | ≥20% (Min) |
