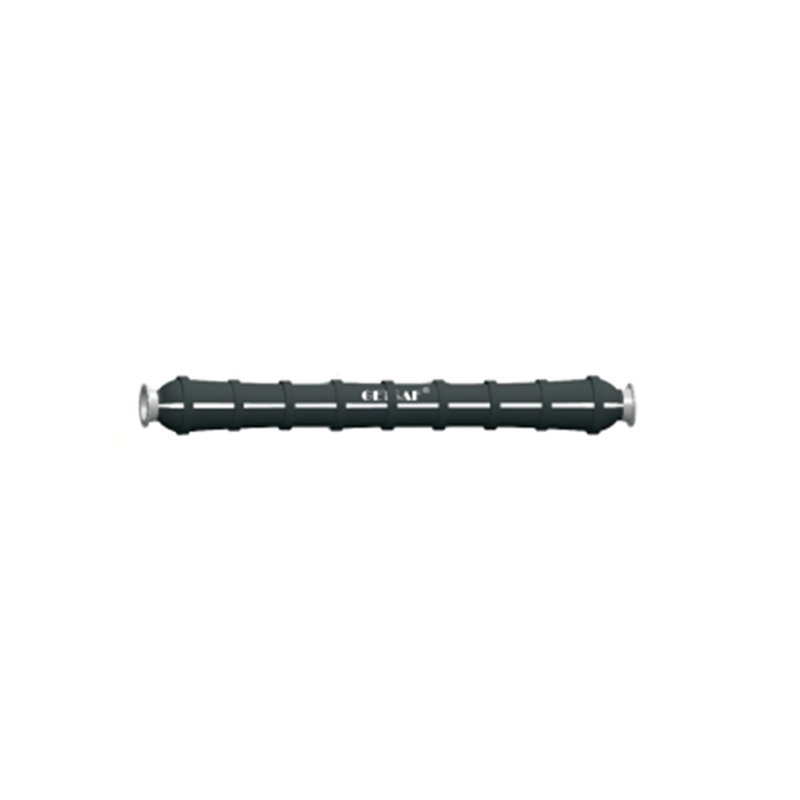

The enhanced pipe—featuring a non-buoyant end—is suitable for deep-water operational environments, requiring no additional buoyancy support. This configuration reduces underwater loads and installation costs, making it ideal for applications in water depths exceeding 50 meters.
| Parameter | Specification |
|---|---|
| Model | GS81111-NFC/ GS82111-NFC |
| Inside Diameter | 8″(200mm)-24″(600mm) |
| Working Pressure | 15bar/ 19bar/ 21bar |
| Burst Pressure | ≥5×WP |
| Min Bend Radius | 4×DN(Submerged) |
| Installation | Submerged |
| Flange | ASME B16.5 Class 150/300 |
| Flow Velocity | 21 m/s (continuous) |
| Temperature | -20°C to +82°C |
| Conveyed Media | Crude Oil and Liquid Petroleum Products (excluding LPG/LNG; max. 50% aromatics) |
| Electrical Continuity | Electrically Continuous |
