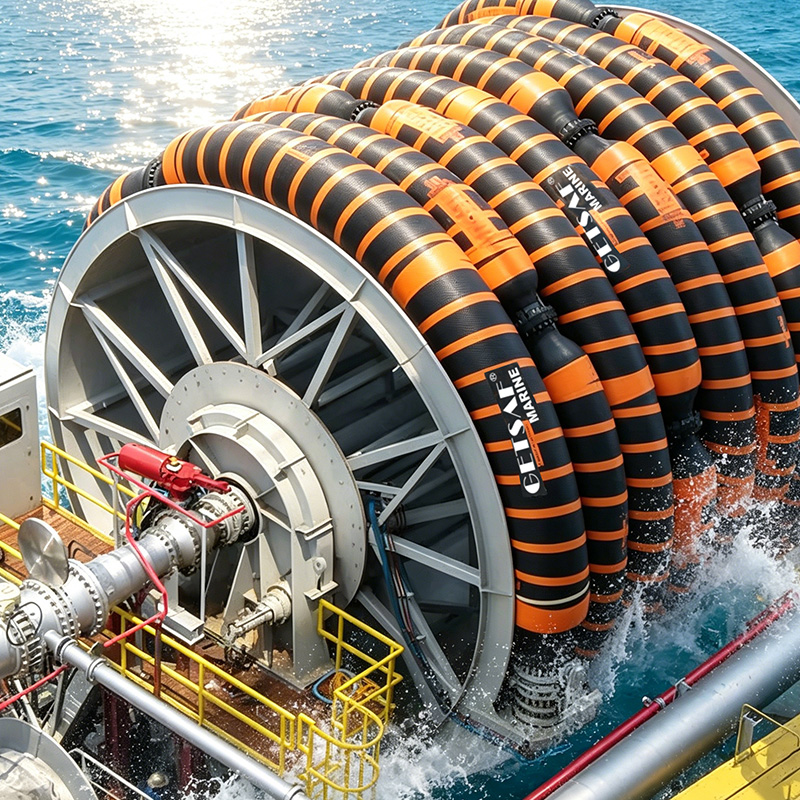

卷轴软管专为卷筒式收放系统设计，可实现快速部署和回收。GS81112-REEL/GS82112-REEL采用特殊加强结构，适应频繁的卷绕和展开操作。
These reel-mounted hoses are specifically designed for reel-based deployment and retrieval systems, enabling rapid deployment and retraction. The GS81112-REEL and GS82112-REEL models feature a specialized reinforced structure to withstand frequent winding and unwinding operations.
| 参数Parameter | 规格Specification |
|---|---|
| 型号Model | GS81112-REEL/ GS82112-REEL |
| 内径Inside Diameter | 4″(100mm)-12″(300mm) |
| 工作压力Working Pressure | 15bar/ 19bar/ 21bar |
| 最小弯曲半径MinBendRadius | 4×DN(Submerged)/ 2×DN(Reeling) |
| 卷绕次数ReelingCycles | ≥500cycles |
| 适用卷筒ReelType | 液压驱动/手动Hydraulic/Manual |
| 内衬材料Liner | NBR耐油橡胶Oil-resistantNBR |
| 标准长度StandardLength | 按卷筒规格Asperreelspec |
