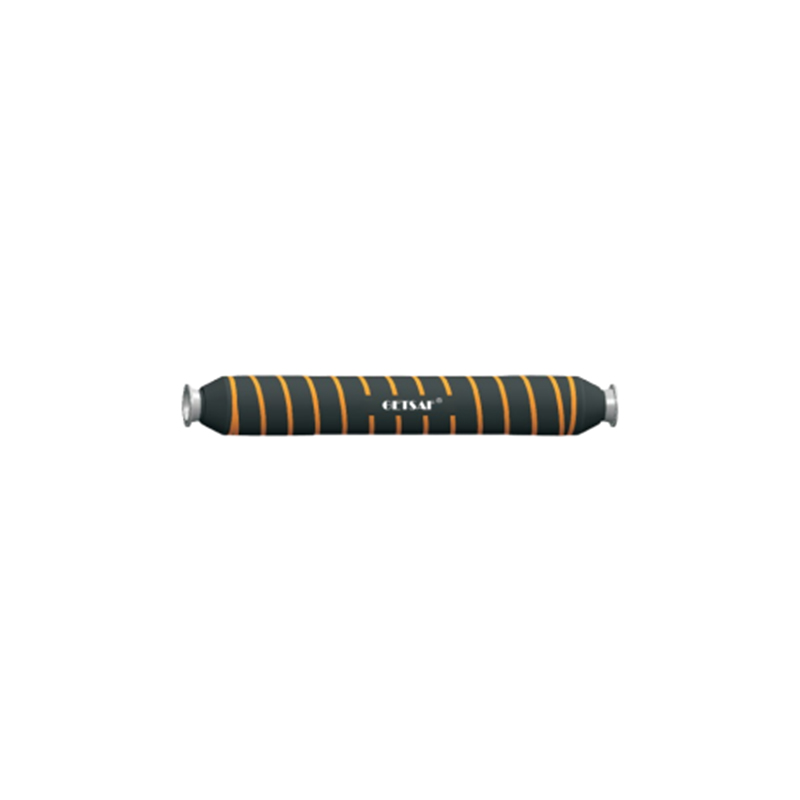

尾管是CALM/SPM软管系统的末端组件，连接最后一节软管与船舶或码头管道。GS81114/GS82114尾管采用特殊加强结构，可承受较大的弯曲应力和端部载荷。
The tail hose is the terminal component of a CALM/SPM hose system, connecting the final hose section to the vessel or terminal piping. The GS81114/GS82114 tail hose features a specially reinforced structure designed to withstand significant bending stresses and end loads.
技术参数 | Technical Parameters
| 参数Parameter | 规格Specification |
|---|---|
| 型号Model | GS81114（单骨架）/ GS82114（双骨架） |
| 内径InsideDiameter | 6″(150mm)-24″(600mm) |
| 工作压力WorkingPressure | 15bar/ 19bar/ 21bar |
| 爆破压力BurstPressure | ≥5×WP |
| 最小弯曲半径MinBendRadius | 6×DN(Floating) |
| 吊装耳板LiftingLugs | 12″=100kN/ 16″=150kN/ 20″=200kN |
| 标准长度StandardLength | 9.1m/ 10.7m/ 12.2m |
