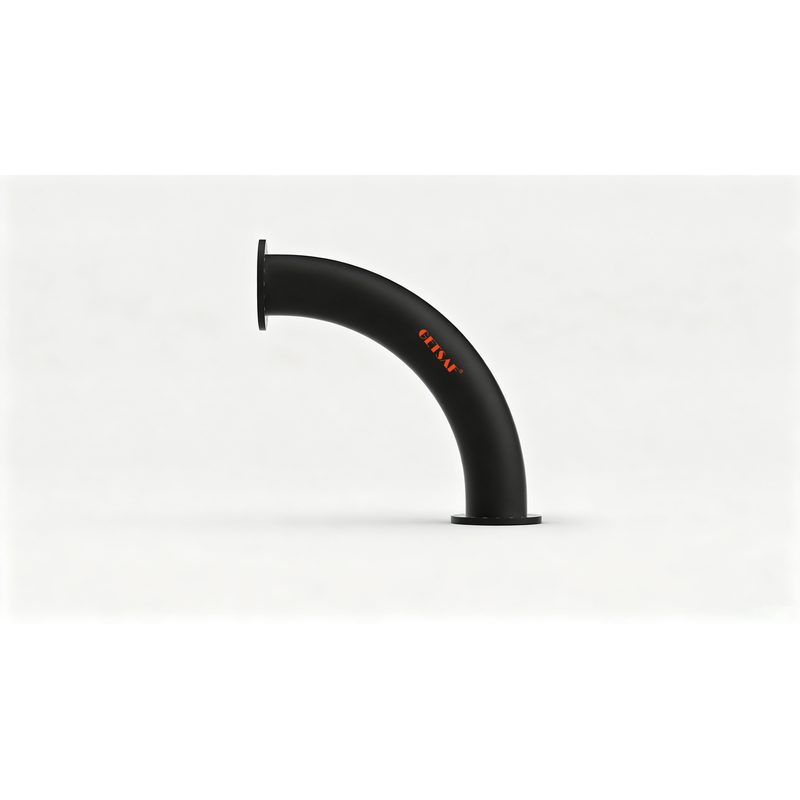

Pre-shaped Elbow Hose

Product Overview

A pre-shaped rubber elbow hose used to change the conveying direction in compact or special dredging equipment positions.

Product Detail

The pre-shaped elbow hose is manufactured with a curved hose body, allowing the pipeline direction to change without excessive stress on adjacent equipment. It also provides shock absorption and flexible protection in low-pressure dredging pipeline sections.

Features

• Pre-formed curved hose body for direction change
• Protects equipment by absorbing vibration and movement
• Wear-resistant lining for slurry service
• Available as steel nipple, reducing steel nipple or sandwich flange type
• Suitable for small-bore, low-pressure special pipeline sections

Technical Parameters

Design Note

Customized specifications are available according to project requirements. Final design should be confirmed based on slurry density, pipeline layout, dredger type, pressure, bending radius and installation conditions.

Applications

Used in special parts of dredging equipment where the pipeline needs to change direction and absorb vibration.

Information Needed for Quotation

• Nominal bore size, overall length and flange standard
• Working pressure, test pressure and suction/vacuum requirement if applicable
• Conveyed material: mud, sand, clay, silt, gravel, coral, ore or other slurry
• Slurry density, solid content, particle size and abrasion condition
• Pipeline arrangement: floating, submerged, shore, deck, pump inlet/outlet or bow blowing
