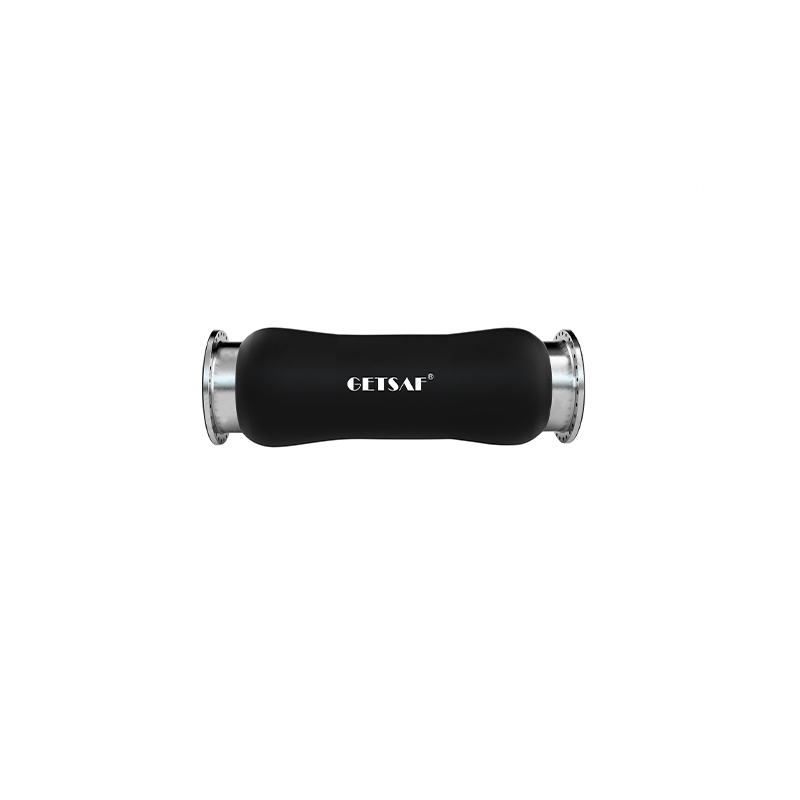

Armored Discharge Hose

产品概述 | Product Overview

耐切割排泥管适用于高浓度、强磨蚀并夹带尖锐颗粒的排泥工况,可用于疏浚主排线、增压泵后排线以及岸线高磨损输送段。相比普通排泥管,该类产品更强调工作层耐切割性能、骨架层抗冲击能力及端部连接可靠性,以适应更严苛的输送工况和更高的维护周期要求。

Armored discharge hose is intended for severe-duty discharge service involving sharp, coarse and highly abrasive solids. Compared with a standard discharge hose, this family is designed around improved cut resistance in the working tube, stronger reinforcement against impact and dependable end fitting retention for demanding dredging pipelines and shore discharge applications.

技术参数 | Technical Parameters

参数Parameter 规格Specification
型号Model GS-DG26-AD
内径InsideDiameter 500mm-1200mm
工作压力Working Pressure 2.5MPa-4.0MPa
标准长度Standard Length 1m-11.8m
耐切割层Armor Hardness HB400-HB550
内衬材料Inner Liner 耐切割/耐磨橡胶 Cut Resistant / Abrasion Resistant Rubber
端部连接End Flange 钢法兰 Steel Flange
适用介质Typical Medium 含尖锐颗粒泥浆 Sharp and Abrasive Slurry
