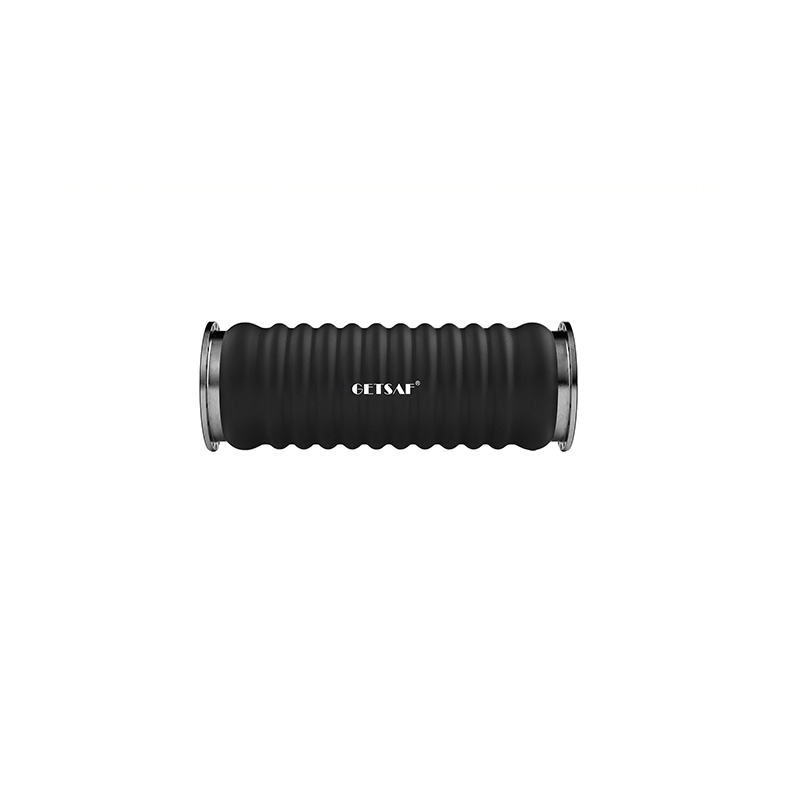

Suction hose is designed for the suction side of dredging systems, including draghead systems on trailing suction hopper dredgers and suction lines on cutter suction dredgers. In addition to abrasion resistance, this hose family must provide adequate vacuum resistance, body stability and end reinforcement so the hose remains serviceable under negative pressure and repeated bending during suction duty.
| Parameter | Specification |
|---|---|
| Model | GS-DG24-SH |
| InsideDiameter | 200mm-700mm |
| Vacuum Resistance | -0.09MPa |
| Working Pressure | 1.5MPa-3.0MPa |
| Standard Length | 1m-11.8m |
| Inner Liner | Wear Resistant Rubber |
| End Flange | Rubber Flange / Steel Flange |
| Min Bend Radius | 4×DN |
