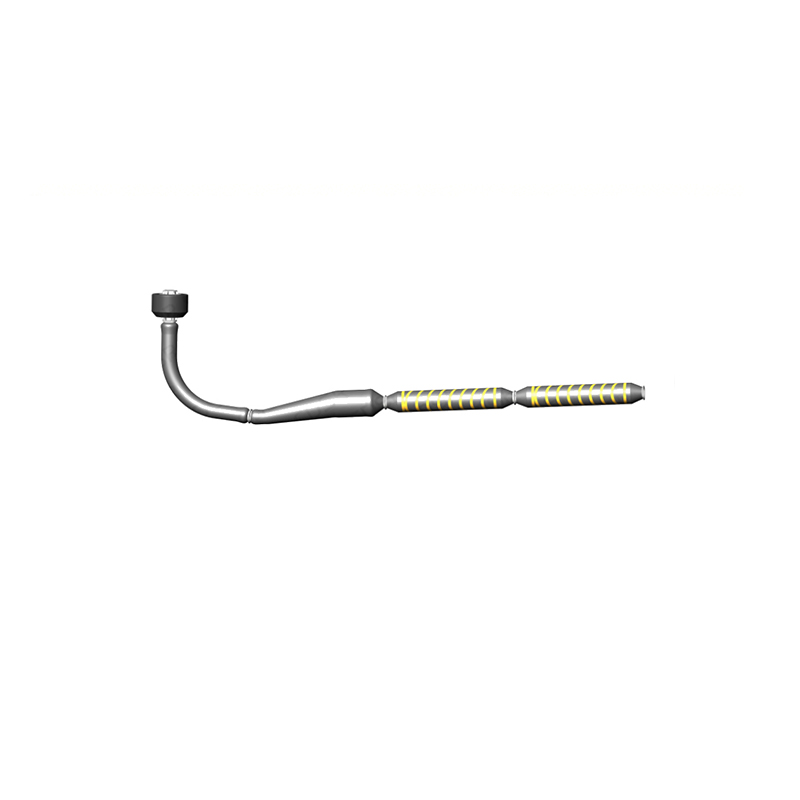

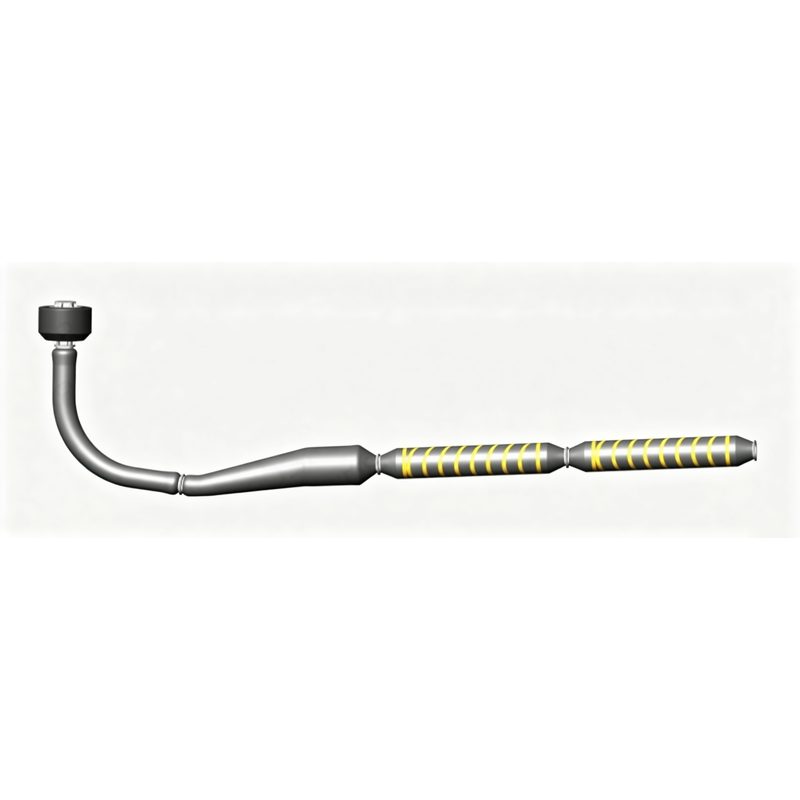

Bow blowing hose set is a flexible assembly used in TSHD bow blowing operations to establish a quick and reliable connection between the vessel and the bow blowing system. Publicly available layouts usually describe the set as a project-based combination of head float, transition hose, floating hose sections and matching fittings, with emphasis on buoyancy arrangement, easy identification and practical field assembly.
| Parameter | Specification |
|---|---|
| Typical Configuration | Head Float + Transition Hose + Mainline Hose + Fittings |
| Typical Set Code | GS-DG30-BB |
| Connection Method | Flange / Quick Coupling |
| Identification | Color Band / Marking |
| Buoyancy Arrangement | Head Float + Local Buoyancy Arrangement |
| Component | Typical Code | Function |
|---|---|---|
| Head Float | BB-HF | Provide buoyancy and identification |
| Transition Hose | GS-DG22-TF | Control line profile transition |
| Floating Hose | GS-DG21-FD | Main transfer section |
