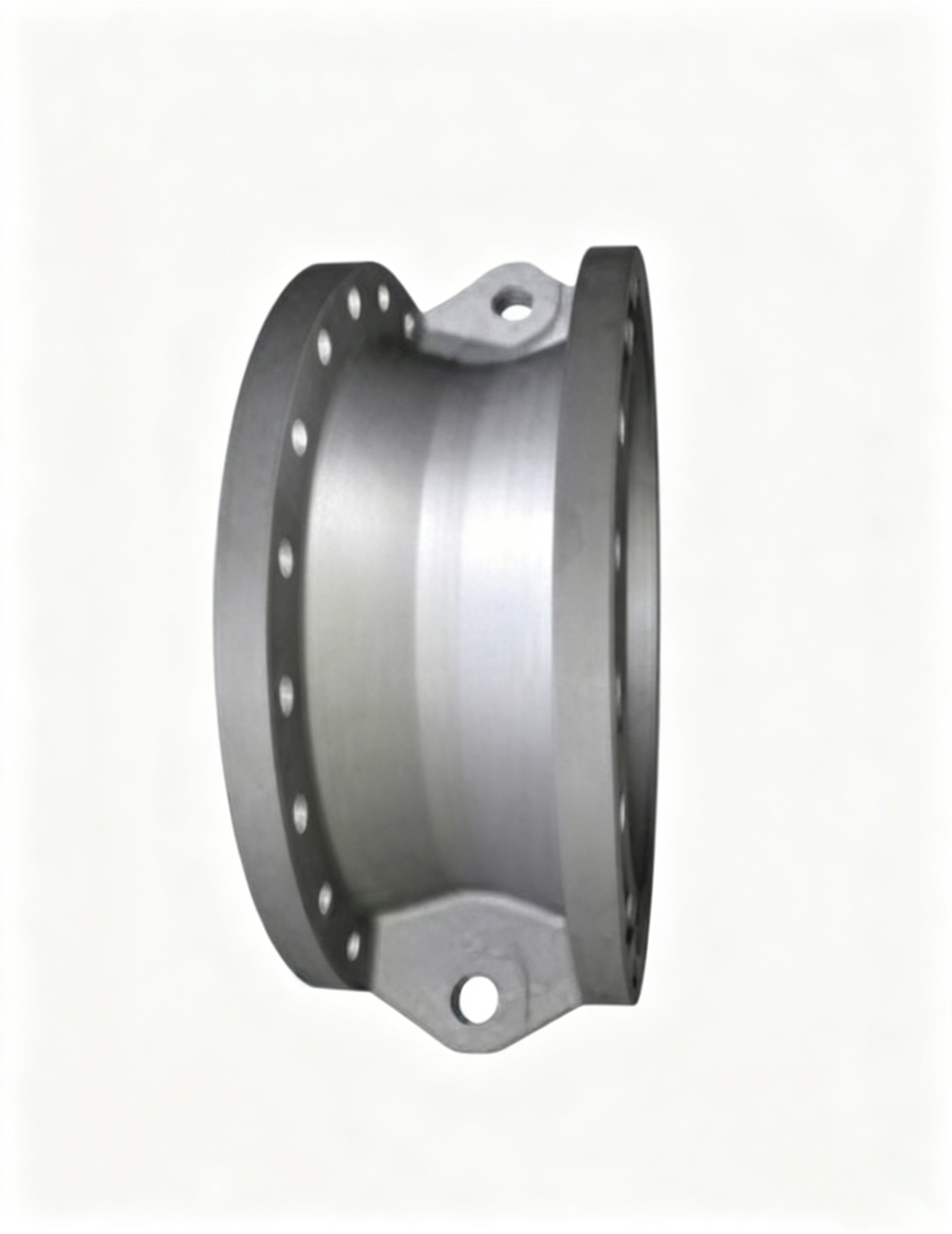

Compact sandwich flange connector for end connection assemblies where space is limited.
Sandwich Flange End Connectors are compact flanged connection components used where a shorter end connection is preferred. The connector can be supplied according to nominal bore, pressure class, flange thickness and bolt drilling requirement.
For project inquiries, please share the nominal size, pressure class, mating flange or connector dimensions, material requirement and coating requirement with GETSAF.
| Parameter | Specification |
|---|---|
| Description | Sandwich Flange End Connectors are compact flanged connection components used where a shorter end connection is preferred. The connector can be supplied according to nominal bore, pressure class, flange thickness and bolt drilling requirement. |
| Pressure Class | Class 150 (PN20), Class 300 (PN50), Class 1500 (PN260) or project-specific. |
| Common Materials | Carbon steel, stainless steel or alloy steel with optional corrosion protection. |
| Typical Applications | Compact end connector assemblies, replacement flange components, restricted-space pipeline connections and custom connection interfaces. |
| Options | Custom flange diameter, custom bolt circle, coating, gasket set, stud bolt and nut set. |
| Standards Notes | Flange interface must match mating connector dimensions, pressure rating and sealing face requirement. |
