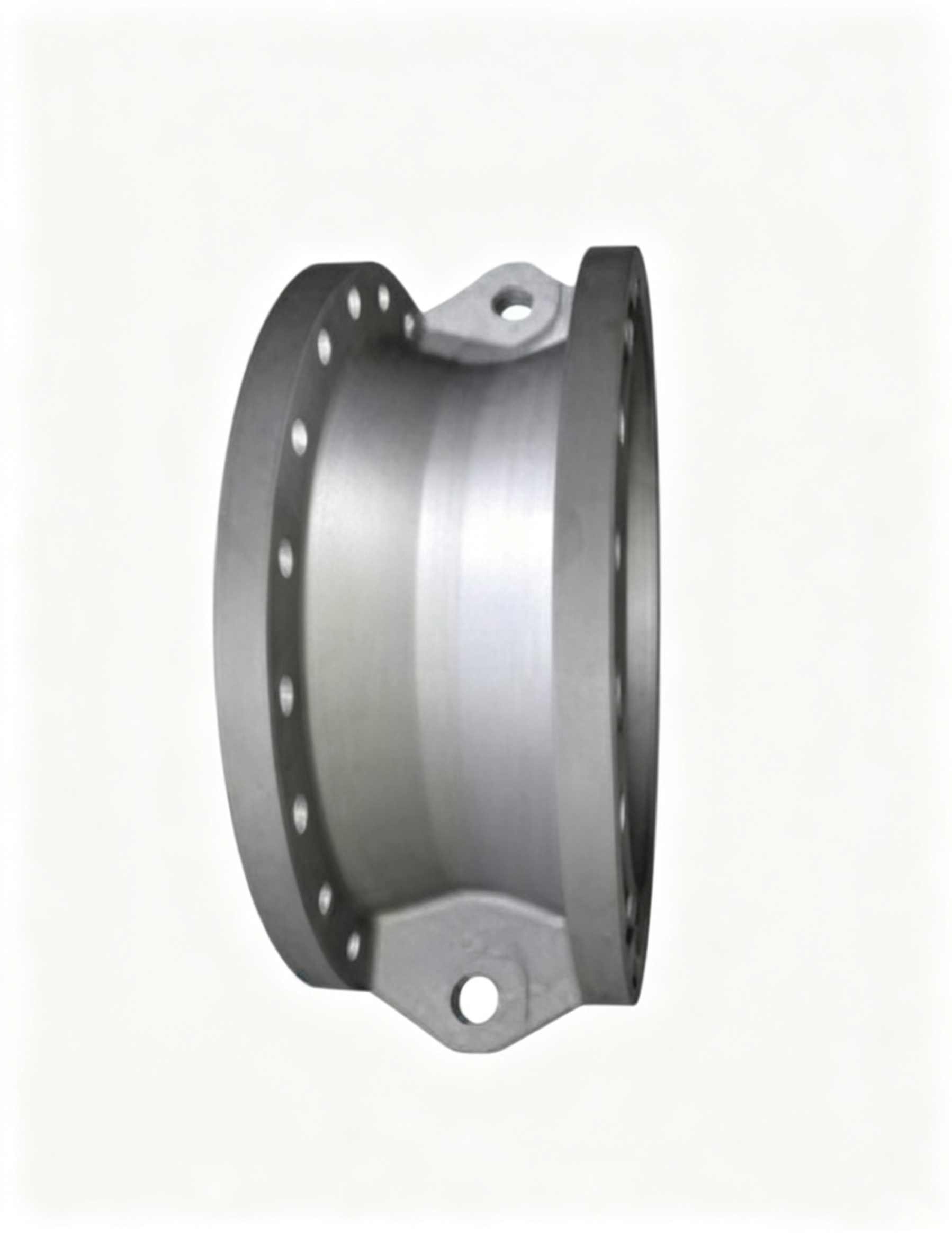

Custom flange connector manufactured according to drawings, pressure class and mating interface requirements.
Custom End Connector Flanges are supplied for projects where standard flange dimensions are not sufficient. Bore, bolt circle, flange thickness, sealing face, material grade and coating can be matched to the connection drawing.
For project inquiries, please share the nominal size, pressure class, mating flange or connector dimensions, material requirement and coating requirement with GETSAF.
| Parameter | Specification |
|---|---|
| Description | Custom End Connector Flanges are supplied for projects where standard flange dimensions are not sufficient. Bore, bolt circle, flange thickness, sealing face, material grade and coating can be matched to the connection drawing. |
| Pressure Class | Class 150 (PN20), Class 300 (PN50), Class 1500 (PN260) or project-specific. |
| Common Materials | Carbon steel, stainless steel, alloy steel or project-specified material. |
| Typical Applications | Special end connector assemblies, replacement flange components, non-standard pipeline interfaces and engineered connection points. |
| Options | Custom OD, ID, bolt hole pattern, flange thickness, sealing face, coating, marking and inspection documents. |
| Standards Notes | Final design should be based on customer drawing, pressure requirement and mating connector dimensions. |
